In precision machining, clean edges and smooth transitions are critical—not just for aesthetics, but also for assembly accuracy and safety. That’s where carbide chamfer end mills come in. These specialized tools are designed to create precise beveled edges, deburr parts, and prepare surfaces for welding, painting, or mechanical assembly.
Whether you're working with steel, aluminum, stainless steel, or titanium, a carbide chamfer end mill offers both durability and performance—especially in high-speed CNC operations where accuracy and repeatability are key.

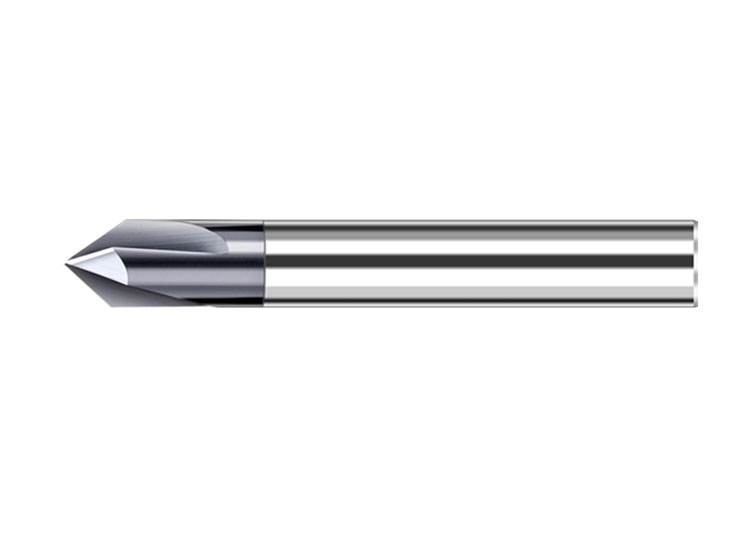

A carbide chamfer end mill is a type of cutting tool made from tungsten carbide, engineered to create an angled cut or “chamfer” on the edge of a workpiece. Most commonly manufactured with 30°, 45°, 60°, or 90° angles, these tools feature a pointed or flat tip, and come in various flute configurations depending on the material and surface finish required.
Carbide is significantly harder than HSS (high-speed steel) and retains sharpness longer, especially at higher cutting speeds. According to Kennametal, carbide tooling can outperform HSS by up to 10x in metal removal rate.
After drilling or milling, sharp burrs often remain. Chamfer end mills are commonly used to remove burrs and soften edges, which is critical for worker safety and part functionality.
Many mechanical components require a chamfered edge for easy insertion, especially in automotive, aerospace, and mold-making applications. A chamfer ensures that mating parts fit precisely without forcing or misalignment.
Chamfering prepares parts for downstream processes like welding, anodizing, or painting, by removing sharp transitions that could cause weak spots or poor coverage.
Although not a true countersink tool, a carbide chamfer end mill can be used for light countersinking operations, especially when controlled depth is not mission-critical.
Some manufacturers use 90° or custom-angle chamfer mills for engraving or V-grooving aluminum or softer metals in signage and light-duty applications.
| Feature | What to Look For |
|---|---|
| Angle | 45° is standard; 60° or 90° for specialized parts |
| Tip Shape | Pointed for precision, flat for wider chamfer |
| Flute Count | 2-flute for soft materials, 4-flute for harder metals |
| Coating | TiAlN or AlCrN for heat resistance in stainless or titanium |
| Shank Size | Match to spindle and holder to reduce vibration |
See Our Chamfer End Mill Selection › – Including 45° carbide chamfer tools with AlTiN coating, ideal for high-speed CNC work.
Compared to HSS (High-Speed Steel), carbide chamfer end mills:
Operate at higher cutting speeds
Provide longer tool life
Minimize tool deflection
Are more cost-effective for high-volume production
While HSS is still common in manual operations or softer materials, carbide is preferred in modern CNC shops focused on precision and productivity.
In the injection mold industry, carbide chamfer tools are often used to:
Create clean transitions between core/cavity surfaces
Avoid sharp corners that could trap plastic or create stress points
Improve mold release performance
When tight tolerances matter, carbide ensures consistent results across multiple cycles.
If your work involves deburring, edge prep, countersinking, or any kind of angled surface finishing, carbide chamfer end mills offer unmatched precision, wear resistance, and productivity. They’re not just a luxury—they're a necessity in modern manufacturing environments where efficiency, part quality, and operator safety matter.
