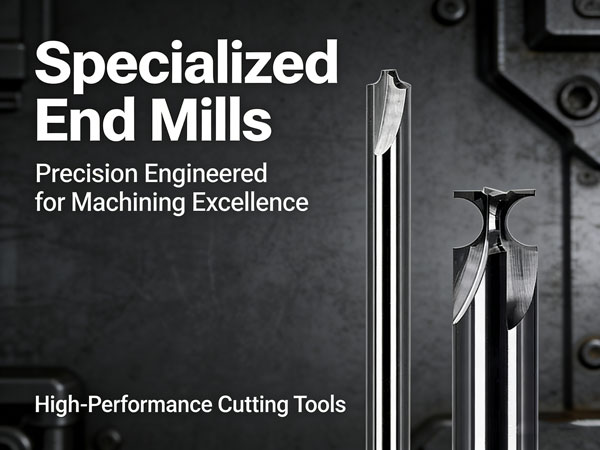

Engineered for complex profiling and intricate geometries. Our specialized solid carbide end mills include SRM Concave Radius, SCM 3-Flute Chamfer, SDM 4-Flute Dovetail, and STM 4-Flute T-Slot cutters. Delivering exceptional rigidity, superior chip evacuation, and mirror-like finishes for demanding mold, aerospace, and precision machining applications.
Tight tolerance grinding ensures accurate angles and radii. Critical for mating parts, mold release angles, and seamless internal transitions.
Strategic flute counts: 3-flute for maximum chip clearance in chamfering, and 4-flute for enhanced rigidity and finish in dovetail and T-slot milling.
T-slot and dovetail cutters feature optimized neck-to-core ratios, minimizing deflection and vibration during deep or side-milling operations.
4-flute concave radius and specialized form cutters provide higher feed rates and smoother surface finishes, reducing or eliminating manual polishing.
Manufactured from ultra-fine grain solid carbide, offering exceptional wear resistance and fracture toughness for intermittent cutting conditions.
Advanced PVD coatings reduce friction and heat buildup, significantly extending tool life in abrasive materials like cast iron, steel, and titanium.
Purpose-built cutting solutions for unique machining challenges
Selecting the correct specialized end mill depends on the specific geometry required and the machining operation (side milling vs. axial cutting). Match your application below.
| Series | Flute Count | Primary Operation | Key Advantage |
|---|---|---|---|
| SRM (Concave Radius) | 4 Flutes | Profiling, Internal Radii | Superior surface finish & rigidity |
| SCM (Chamfer) | 3 Flutes | Deburring, Edge Breaking | Maximum chip evacuation |
| SDM (Dovetail) | 4 Flutes | Side Milling, Undercuts | High rigidity, precise angles |
| STM (T-Slot) | 4 Flutes | Slotting, Fixture Machining | Stability in confined spaces |
Standard end mills can pack chips when chamfering gummy materials, leading to edge chipping.
✅ Solution: Use the SCM 3-Flute Chamfer Mill. The enlarged gullet volume ensures smooth chip flow and prevents recutting.
Dovetail and T-slot cutters have reduced neck diameters, making them prone to bending under high radial loads.
✅ Solution: Utilize 4-flute designs (SDM/STM) for maximum core rigidity. Always use climb milling and conservative radial stepovers (10-20%).
Machining internal concave radii with standard ball noses can leave visible cusps and require manual polishing.
✅ Solution: Deploy the SRM 4-Flute Concave Radius End Mill. It matches the target geometry perfectly, yielding a mirror finish and eliminating benchwork.
Concave radii for core fillets, dovetail cutters for slider undercuts and release angles.
Precision T-slot milling for modular fixture bases and lightweight aluminum jig components.
Dovetail profiling for wear-resistant, interlocking sliding joints and clamping mechanisms.
Rapid, clog-free edge breaking and chamfering on complex CNC-machined parts.
Contact our experts today for a free quote or technical consultation.
