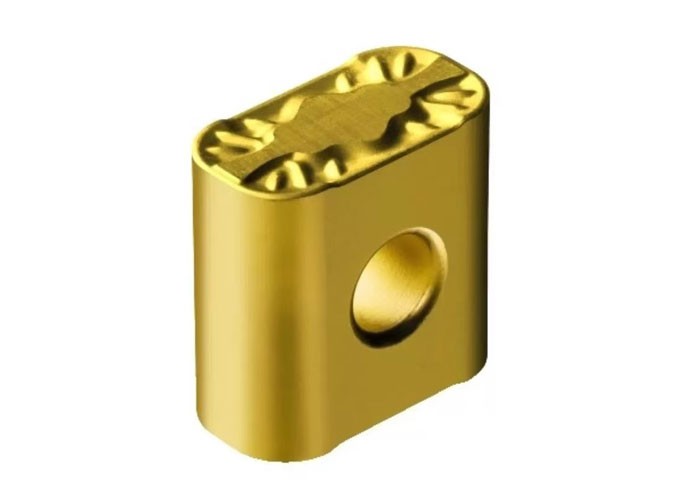

175.32 Series

Q: Which Amony grade is recommended for 175.32 inserts?

The PA4425 grade is highly recommended for 175.32 inserts. It is a CVD coated grade specifically designed for intermittent and general turning of steel, offering the perfect balance of wear resistance and toughness required for the demanding conditions of train wheel trimming.

The ultimate specialized solution for the railway industry. 175.32's vertical cutting geometry with negative chamfer delivers extreme high edge strength, making it the first choice for heavy-load trimming and profiling of train wheels under severe interrupted cutting conditions.

Vertical Cutting Geometry Negative Chamfer Train Wheel Trimming High Edge Strength Heavy-Load Profiling

View Specifications Request Bulk Pricing

Procurement & Commercial Terms

MOQ	10 pcs (Sample/Stock) \| 50 pcs (OEM/Bulk)
Lead Time	Same day dispatch (standard stock) \| 15–20 days (custom/OEM)
Inventory	175.32-191940-22 to 175.32-191940-28 specialized range in stock. Ready to ship.
Material & Coating	Substrate: High-Toughness Carbide \| Coating: Medium-Temp CVD (PA4425)
Packaging	Individual plastic boxes (10 pcs) \| Rigid export cartons
Shipping	DHL/FedEx/UPS for samples \| Air/Sea freight for bulk. Incoterms: EXW, FOB, CIF, DDP

175.32 Dimensions & Specialized Specifications

Specialized vertical cutting geometry with negative chamfer. Engineered for extreme high edge strength in train wheel trimming. Select your insert and inquire for pricing.

Model	Width (mm)	Thickness (mm)	Length (mm)	Corner Radius (mm)	Available Grades	Action
175.32-191940-22	19.0	19.0	40.0	2.2	PA4425	Inquire
175.32-191940-24	19.0	19.0	40.0	2.4	PA4425	Inquire
175.32-191940-28	19.0	19.0	40.0	2.8	PA4425	Inquire

Machining Strategy: 175.32 is specifically engineered for the severe interrupted cuts and massive impact loads of train wheel trimming. For general heavy-duty turning, consider our RCMX Series.

Specialized Grade & Geometry Selection Guide

Engineered specifically for train wheel trimming and heavy-load railway profiling.

175.32 Geometry Train Wheel Trimming

Vertical cutting inserts with negative chamfer. High edge strength, the first choice for heavy-load profiling and trimming of train wheels. Withstands severe interrupted cuts and abrasive black scale.

PA4425 CVD Coating

CVD coated grade specifically designed for intermittent and general turning of steel. Offers the perfect balance of wear resistance and toughness required for the demanding conditions of train wheel trimming.

Why Choose Amony 175.32 for Train Wheel Trimming?

Solving critical pain points for B2B railway manufacturers requiring maximum process safety in extreme heavy-load turning.

Extreme High Edge Strength

Train wheel trimming generates massive impact loads. 175.32's vertical cutting geometry with negative chamfer absorbs extreme forces, preventing catastrophic edge breakdown.

Result: Uninterrupted machining cycles on forged and cast railway components.

Tough PA4425 CVD Grade

Our PA4425 grade is specifically engineered for intermittent and general turning of steel. It offers the perfect balance of wear resistance and toughness for severe interrupted cuts.

Result: Extended tool life in the most demanding railway trimming operations.

Scale & Interrupt Resistance

Forged train wheels feature hard, abrasive black scale. The robust geometry of 175.32 combined with PA4425 substrate withstands these conditions without micro-chipping.

Result: Predictable tool life and reduced scrap rates in heavy-load trimming.

Factory Direct & OEM Support

As an ISO 9001 certified manufacturer, we provide direct pricing, stable lead times, and OEM support (laser marking, private packaging). Our engineers offer free CAM parameter optimization.

Result: Optimized supply chain costs and dedicated technical partnership.

Train Wheel & Heavy-Load Trimming Applications

Where Amony 175.32 inserts deliver unbeatable process safety and tool life.

Train Wheel Trimming

Heavy-load trimming operations on large diameter railway wheels. 175.32's vertical geometry ensures stable chip breaking under extreme metal removal rates.

Recommended: 175.32-191940-24 / PA4425

Benefit: Eliminates edge breakdown in unstable cutting conditions.

Heavy-Load Wheel Profiling

Profiling of forged train wheel hubs. The negative chamfer handles severe interrupted cuts and massive radial forces without failure.

Recommended: 175.32-191940-28 / PA4425

Benefit: High toughness substrate withstands abrasive scale and impact forces.

Forged Steel Roughing (ISO P)

General heavy roughing of large forged steel components with black scale. The negative chamfer protects the cutting edge from instant chipping.

Recommended: 175.32-191940-22 / PA4425

Benefit: Excellent cost-performance for general intermittent turning of steel.

Large Roller & Shaft Profiling

Deep cuts and high feeds are required to remove large volumes of material on heavy industrial rollers. 175.32 ensures stability under extreme loads.

Recommended: 175.32-191940-24 / PA4425

Benefit: Maximum metal removal rate with excellent wear resistance.

Recommended Cutting Parameters (ap & f)

Optimize your feeds and depths for heavy-load trimming. All data strictly verified from factory testing.

Grade	Operation	Depth of Cut (ap mm)	Feed Rate (f mm/rev)	Target Material
PA4425	Train Wheel Trimming	2.00 - 12.00	0.30 - 1.00	Forged Steel (P) / Train Wheels
PA4425	Severe Interrupted	1.50 - 8.00	0.25 - 0.80	Steel (P) / Cast Iron (K)

Best Practices for Train Wheel Trimming

Machine Rigidity & Overhang

175.32 generates massive cutting forces. Ensure your CNC lathe has sufficient power and rigidity. Keep the tool holder overhang as short as possible to prevent vibration.

Coolant Strategy for Forged Scale

When machining forged parts with scale, dry machining or minimal coolant is often preferred to prevent thermal shock (cracking) on the CVD coating when exiting the scale.

Tool Holder Selection

Use robust clamping systems designed for vertical cutting inserts. The clamping mechanism must provide immense force to prevent shifting under heavy impact.

Constant Engagement Strategy

For interrupted cuts, use CNC programming techniques (like variable depth of cut or lead-in arcs) to maintain constant tool engagement, reducing the shock of sudden entry.

Frequently Asked Questions

175.32 inserts are specifically engineered for train wheel trimming and heavy-load profiling in the railway industry. Their vertical cutting geometry with negative chamfer provides extreme high edge strength to withstand the severe interrupted cuts and massive impact loads of railway wheel machining.

The PA4425 grade is highly recommended for 175.32 inserts. It is a CVD coated grade specifically designed for intermittent and general turning of steel, offering the perfect balance of wear resistance and toughness required for the demanding conditions of train wheel trimming.

Yes, the robust geometry of 175.32 inserts combined with the tough PA4425 substrate is specifically engineered to withstand the abrasive black scale and severe interrupted cuts encountered during train wheel trimming and profiling operations.

Request Quote for 175.32 Series

Specify your diameter range, material, and monthly volume. We respond with pricing, stock status within 24 hours.

ISO 9001 Certified Factory

Export Packaging Standard

Technical Support Available
