PRODUCT DETAILS
ANKT040204R provides a perfect balance between edge strength and cutting sharpness. Designed for light to medium-duty milling with superior surface finish and stability.
Features:
Sharp yet strong cutting edge
Consistent performance in light milling
Ideal for general machining of carbon steel and stainless steel
Grades: PA1025 / PA1825 / MA1525

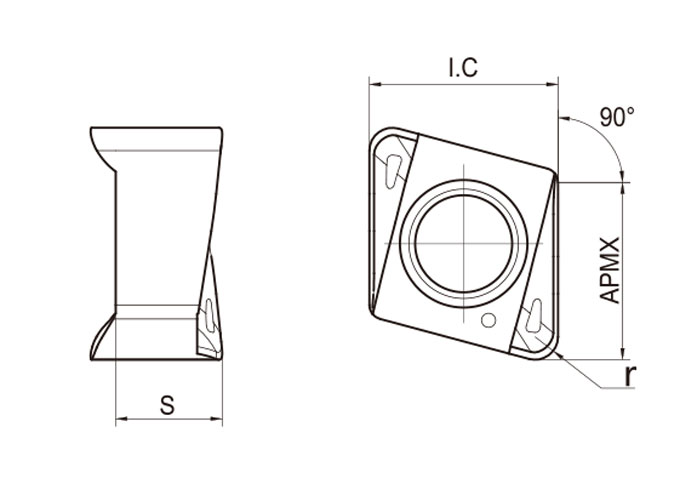

ANKT040204R Size:
| Length |
Size(mm) |
||||
| IC | S | APMX | BS | r | |
| 4 | 4 | 3.1 | 3.5 | - | 0.4 |
ANKT040204R Specifications:
| Model |
ap (mm) |
f (mm/rev) |
Grade |
|||||||
|
CVD |
PVD |
|||||||||
| KA3115 | PA4215 | PA4225 | PA1025 | PA1825 | MA1525 | SA1520 | SA1525 | |||
| ANKT040204R-M | 1.0-3.0 | 0.06-0.12 | ● | ● | ● | |||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
