CNHX160608T Carbide Milling Insert — High-Feed Shoulder Milling Insert

The CNHX160608T model is specifically engineered for demanding high-feed and large-area shoulder milling operations. With a robust geometry and larger cutting edge footprint, it excels where removal rate, stability and tool life are priorities. Ideal for machining large parts, castings or components requiring high material removal while maintaining dimensional accuracy and surface finish.

Key Benefits & Features

• High-feed capability: Supports elevated feed rates while maintaining tool stability and edge integrity.

• Robust geometry: Designed with enhanced corner strength and inscribed circle to minimise deflection during heavy cuts.

• Advanced coating + substrate: Available in PA1025, PA1825, and MA1525 grades to match material groups (steel, steel heavy feed, stainless steel).

• Efficient chip evacuation: Optimised chip-breaker design helps maintain consistent performance in interrupted or rough cuts.

• Cost-effective productivity: Longer life and less frequent insert changes reduce tool cost per part and improve uptime.

Application Highlights

• Shoulder and face milling of large steel or stainless components.

• Heavy-duty production runs where tool life and consistency determine profitability.

• Ideal for users seeking to reduce tooling variations by using one high-capability insert for multiple parts and materials.

Recommended Material-to-Grade Mapping

• Steel (stable finishing) → PA1025

• Steel heavy-feed / interrupted milling → PA1825

• Stainless steel finishing/semi-finishing → MA1525

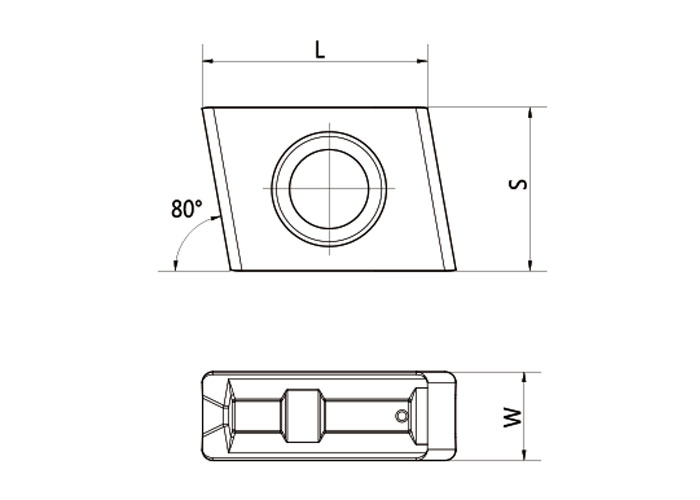

CNHX160608T Size:

CNHX160608T Specifications:

Inserts Grade Information:
