PRODUCT DETAILS

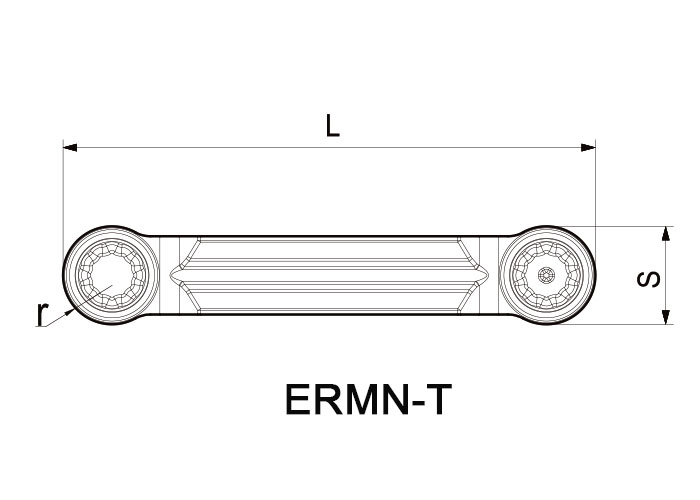

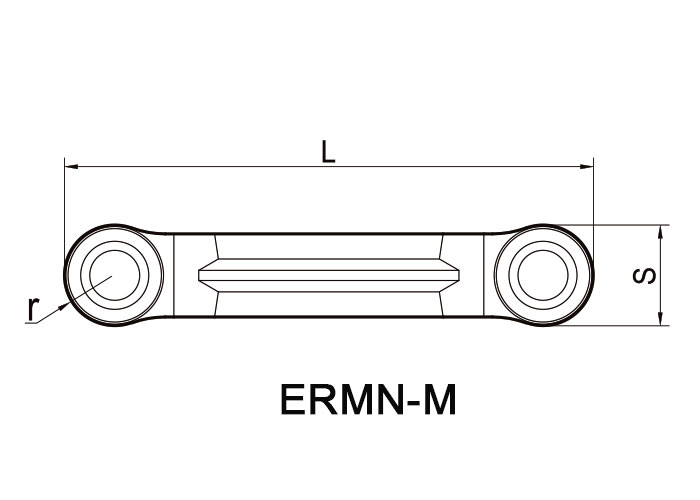

ERMN600 Size:
| Model | Width |
Size(mm) |
||
| S | r±0.1 | L | ||
| ERMN600-T | 600 | 6.0 | 3 | 27.5 |
| ERMN600-M | 600 | 6.0 | 3 | 26 |
ERMN600 Specifications:
| Model |
f (mm/rev) |
Grade |
|||||||
|
CVD |
PVD |
||||||||
| KA3115 | PA4215 | PA4225 | MA1820 | PA1825 | PA1828 | SA1520 | SA1525 | ||
| ERMN600-T | 0.09-0.35 | ● | ● |
|
|||||
| ERMN600-M | 0.15-0.27 | ● | ● | ||||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
