LNKT16090416 Milling Insert — High-Feed Face & Shoulder Milling Insert

The LNKT16090416 model is specifically engineered for high-feed applications in face and shoulder milling of steel and stainless steel parts. With its helical cutting edge and robust substrate, it supports elevated feed-per-tooth values while maintaining tool stability and surface quality. Ideal for machining large parts or high-volume runs where every second of cycle time counts.

Key Benefits & Features

• High-feed capability: Helical edge design enables increased feed rates with stable cutting performance.

• Robust geometry: Thick insert body and positive rake reduce cutting resistance and increase wear resistance.

• Grade flexibility: Eligible for PA1025 (steel finishing), PA1825 (steel heavy-cut), MA1525 (stainless steel) to match your material demands.

• Improved chip control: Helical geometry and chip-breaker design assist in consistent chip flow and reduced recuts.

• Cost-effective production: Fewer tool changes, fewer downtime interruptions, lower tooling cost per piece.

Recommended Material-to-Grade Mapping

• Steel finishing → PA1025

• Steel heavy-cut / interrupted → PA1825

• Stainless steel finishing/semi-finishing → MA1525

Application Highlights

• High-feed face milling of large steel or stainless plates or blocks.

• Shoulder milling on cast or machined components with high material removal demands.

• High-volume manufacturing operations where tool life and throughput drive profitability.

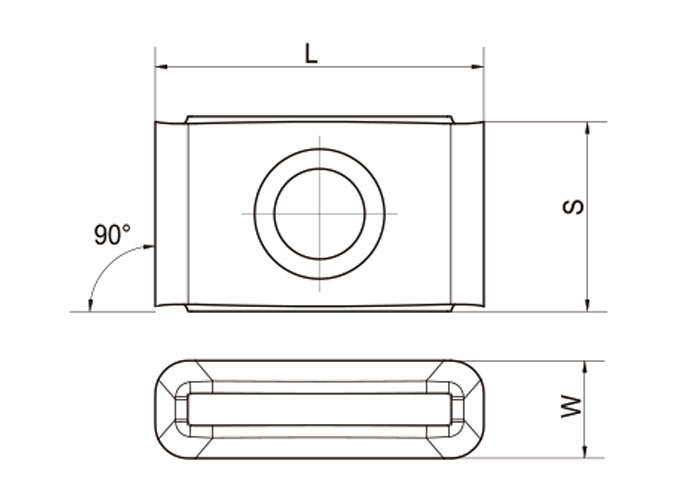

LNKT16090416 Size:

LNKT16090416 Specifications:

Inserts Grade Information:
