PRODUCT DETAILS
The RCMX1606MO is designed for rough turning of forged and cast railway wheels. It features a thick edge and strong cutting geometry for excellent durability.
Ideal for roughing heavy wheel profiles
High wear resistance coating
Suitable for continuous and interrupted cuts

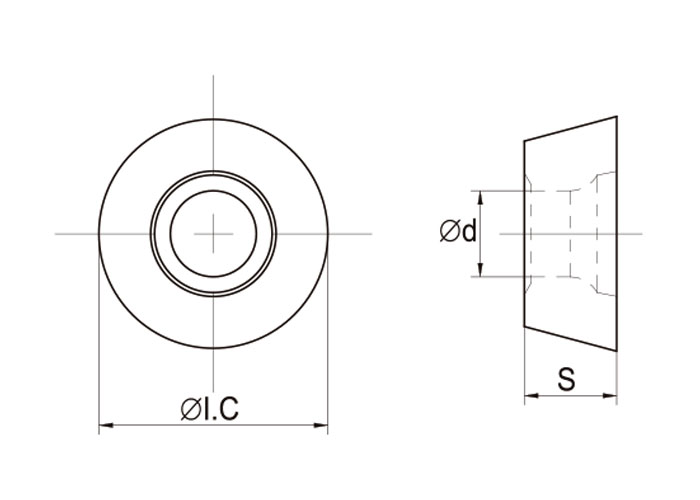

RCMX1606MO Size:
| Length | Size(mm) | ||
| IC | S | d | |
| 16 | 16 | 6.35 | 5.5 |
RCMX1606MO Specifications:
| Model | ap (mm) | f (mm/rev) | Grade | |||||||
| CVD | PVD | |||||||||
| KA3115 | PA4215 | PA4225 | PA1825 | MA1820 | MA1828 | SA1520 | SA1525 | |||
| RCMX1606MO | 3.0-7.0 | 0.40-0.75 | ● | |||||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S | Superalloy | SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
