Carbide Face Milling Insert SNGX090411 | Medium-Size Face Milling Insert for Steel & Stainless

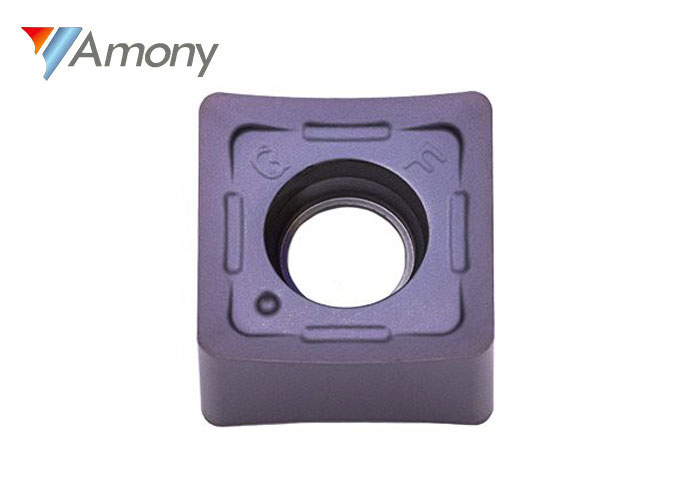

SNGX090411 Carbide Face Milling Insert

Square 90° face milling insert, 9.525 mm inscribed circle, 4.1 mm thickness and 1.1 mm corner radius. Designed for high-efficiency roughing and semi-finishing face milling on CNC machining centers.

Sub-micron grain carbide substrate with multi-layer PVD coating delivers strong edge toughness and wear resistance when cutting carbon steel, stainless steel, alloy steel and cast iron. The geometry provides low cutting forces, stable performance and good chip evacuation at feeds 0.08–0.15 mm/tooth and axial depths up to 4 mm.

Compatible with standard SNGX face milling cutters. Direct drop-in replacement for common SNGX0904xx series inserts. Ideal for large surface facing, slab milling, castings and general production work where high metal removal rates and consistent surface finish are required.

SNGX090411 Size:

SNGX090411 Specifications:

Inserts Grade Information:
