PRODUCT DETAILS
The TPKT040204R shoulder milling insert delivers superior wear resistance and smooth chip evacuation, suitable for light to medium-duty milling applications. Optimized for consistent cutting edges and stable tool engagement.
Features
High-performance carbide substrate for durability
Smooth chip flow with stable cutting geometry
Ideal for small shoulder milling and pocketing
Compatible with PA1025, PA1825 and MA1525 grades

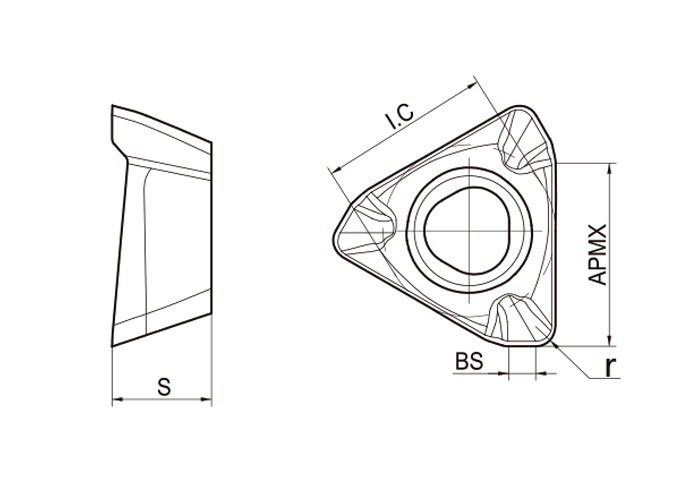

TPKT040204R Size:
| Length | Size(mm) | ||||
| IC | S | APMX | BS | r | |
| 4 | 3.9 | 2.1 | 3.5 | 0.7 | 0.4 |
TPKT040204R Specifications:
| Model | ap (mm) | f (mm/rev) | Grade | |||||||
| CVD | PVD | |||||||||
| KA3115 | PA4215 | PA4225 | PA1025 | PA1825 | MA1525 | SA1520 | SA1525 | |||
| TPKT040204R-M | 0.5-2.0 | 0.04-0.08 | ● | ● | ● | |||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S | Superalloy | SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
