PRODUCT DETAILS
CCGT09T304 carbide insert is a versatile finishing-grade insert widely used in general CNC turning of aluminum, stainless steel, and copper.
The 0.4mm corner radius enhances edge strength while maintaining a bright surface finish, suitable for both light and semi-finishing operations.
Balanced edge geometry for smooth cutting and longer life.
Excellent chip evacuation at medium cutting speeds.
DLC and TiN coatings available for non-ferrous and ferrous materials.
Stable performance in both manual and CNC lathes.
Finishing of aluminum housings, stainless steel valves, copper electrical parts.
Used in automotive, aerospace, and mold finishing industries.

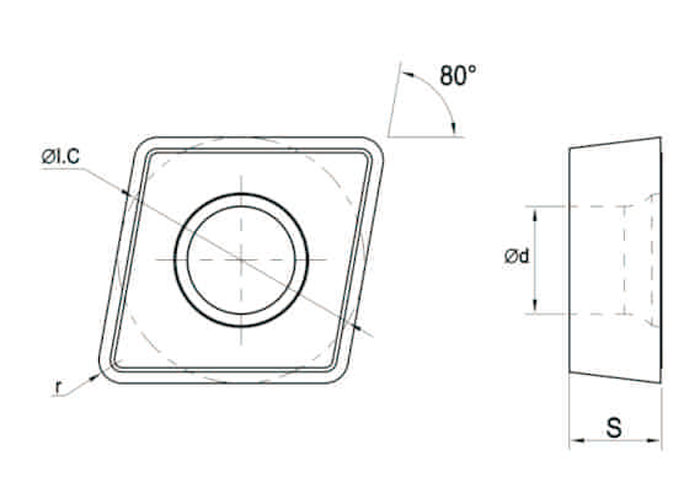

CCGT09T304 Size:
| Length | Size(mm) | |||
| IC | S | d | r | |
| 9 | 9.525 | 3.97 | 4.4 | 0.4 |
CCGT09T304 Specifications:
| Model |
ap (mm) |
f (mm/rev) |
Grade | ||||||
| CVD | PVD | ||||||||
| KA3115 | PA4215 | PA4225 | MA1820 | PA1828 | SA1510 | SA1525 | |||
| CCGT09T304R/L-UF | 0.1-1.5 | 0.05-0.15 | ● | ||||||
| CCGT09T304-SF | 0.2-1.5 | 0.08-0.18 | ● | ● | |||||
CCGT09T304 Chip Breaker:
| Chip Breaker | Application | Features |
| UF |
Small parts processing |
|
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
