Hey, it’s Alex here — 18 years in the carbide insert business, half of that spent fixing midnight panic calls from machining shops all over the world. “Alex, the damn inserts chipped again, 3 shifts down, customer is killing me!” 99% of the time? Wrong CNMG grade or chipbreaker for the steel they were cutting.
2025 is brutal. Steel got tougher, tolerances got tighter, and your customer still wants the price of 2018. If you’re still picking CNMG inserts the old way (open the catalog, choose the cheapest purple one, pray), you’re losing money every single day.
Today I’m emptying my notebook. Everything I learned the hard way so you don’t have to. Save this page — it will literally pay for itself the first time you avoid a $20,000 scrapped batch.

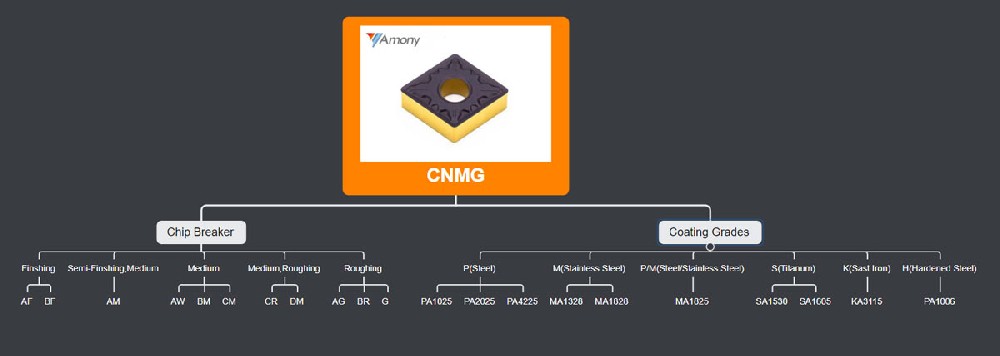

One Picture to Rule Them All – 2025 CNMG Selection Map for Steel
2025 CNMG Selection Map for Steel
[Imagine a big, beautiful infographic here — I’ll describe it so you can make it in 5 min with Canva] → Horizontal axis: Steel hardness (≤180 HB | 180-280 HB | 280-350 HB | ≥350 HB / HRC) → Vertical axis: Operation (Heavy roughing → Roughing → Semi-finishing → Finishing → Super finishing) → Color-coded best chipbreakers: AF,BF,AW,BM,CR,CM,DM,BR,G… → Coating recommendation: Yellow TiN → Black/Gold CVD → Purple-Black latest AlTiSiN → nano coating
Bookmark this map. Thank me later.
Real World Case #1 – 1045 / C45 Bulk Roughing Nightmare
Customer in Turkey, 300 mm diameter shafts, removing 8-12 mm per side, 1000+ parts per month. They were using CNMG120408-PM with old CVD coating. Life? 6-8 parts per edge. Disaster.
Switched to → CNMG120412-BR with new AlTiSiN coating PA4225 Result:
Insert life jumped from 7 parts → 28 parts per corner
Surface finish improved from Ra 3.2 → Ra 1.6 (saved one grinding pass)
Total cost per part dropped 64%
Moral: For high-volume mild steel roughing in 2025, always go 0.12" (3 mm) nose radius + MM chipbreaker + latest tiger coating.
Case #2 – 42CrMo4 (4140) Heat-treated HRC 32-38, Heavy Interrupted Cut
European mold maker, huge forgings, terrible interruption, chatter marks everywhere. They tried everything — even ceramic — nothing lasted more than 15 minutes.
Solution: CNMG120412-DM-PA1006 (deep roughing groove) + thick AlTiSiN + reinforced edge prep Real numbers after change: Before → 14 min per corner, 40% breakage After → 85-110 min per corner, 0% catastrophic failure They sent me a bottle of 18-year single malt. True story.
Case #3 – The 304/316 Stainless Trap Everyone Falls Into
“Stainless is easy, just use MM breaker.” Famous last words. Work-hardening + built-up edge + stringy chips = nightmare.
Fix: CNMG120408-BM-BF + super sharp nano coating(MA1328) Result: Chips finally break, surface mirror-like, tool life doubled. Pro tip: Never, EVER use PM or MM on austenitic stainless in 2025. You’ll thank me.
Case #4 – GCr15 / 52100 Bearing Steel HRC 60+ Semi-Finish
Chinese factory making wind turbine bearings. They were using cheap KM breaker because “it’s universal”. Edge chipping after 3-4 parts.
Switched to CNMG120408-AF-PA4225 with ultra-fine substrate + golden TiN top layer for edge identification Life went from 4 parts → 35 parts per edge. One grade change saved them $180,000 per year. One.
Case #5 – The 2025 New Monster Steels (High-strength ship plate, Q890, etc.)
European shipyard cutting 100-120 mm thick ultra-high-strength steel. Even the big Swedish brand’s latest grade was crying after 20 minutes.
We got early samples of the upcoming 12-corner concept insert (yes, 12 usable corners on a negative insert) + 4th-gen purple-black coating that runs at 1400 °C without oxidation. Result: 4-5× life vs current best-in-class. These will hit the market Q2 2025. If you want to be first, DM me.
The 2025 Coating & Geometry Black Technology You’ll Regret Missing
4th Gen Purple-Black AlTiSiN – 38% longer life in high-temp alloy steels (already shipping)
3D-printed chipbreaker geometry – perfect chip control even at 0.008 IPR
12-corner CNMG prototype – same price, 50% more edges (limited quantities Jan 2025)
10 Deadly Sins – Never Do These in 2025
❌ Buying only by price (the $3.99 inserts will cost you $39.90 in downtime) ❌ Using MM breaker on stainless (built-up edge hell) ❌ Using 0.4 mm radius for heavy roughing (notch wear kills you) ❌ Ignoring the new tiger-stripe coating (your competitor is already using it) ❌ Still using 2018 catalogs (50% of grades are discontinued) ❌ Roughing with PF light-duty breaker ❌ Finishing with RP roughing breaker ❌ Forgetting edge prep on hardened steel ❌ No wiper flat when Ra < 0.8 is required ❌ Stocking only one brand (supply chain will bite you)
Final Warning & Your Next Move
Starting February 2025, the purple-black and tiger coatings go up 15-22% globally (official letters already received).
Want to lock 2024 pricing + get the full 2025 CNMG selection PDF (92 pages, every single new grade, latest pricing, competitor cross-reference, and my personal “Alex’s Top 5” for each application)?
Drop “CNMG 2025” in the form below or scan the QR code and I’ll send it instantly. First 300 people also get my private 2025 failure analysis video pack (real chipped inserts under microscope — pure gold for training your team).
We ship worldwide from stock in China, Germany, and USA. Same-day dispatch if order before 15:00 Beijing time.
Stop gambling with your inserts. Let’s talk steel.
Add my WhatsApp/WeChat (QR code here) — I answer at 3 AM when your spindle stops. 18 years and still addicted to making chips fly beautifully.
See you in the DMs,
Alex Your slightly crazy carbide guy (Who probably knows your exact workpiece better than you do)
P.S. Save this article. Seriously. Your night shift supervisor will kiss you when the next tool life crisis hits at 2 AM.
