Inconel 718 is one of the most widely used nickel-based superalloys, especially in aerospace, power generation, and oil & gas industries. It offers exceptional mechanical strength, corrosion resistance, and stability at elevated temperatures up to 700°C. However, these outstanding properties also make Inconel 718 extremely difficult to machine.
The key challenges include:
High work hardening tendency → rapid increase in cutting resistance.
Extremely high cutting temperatures → causes quick tool wear.
Notch wear and chipping → insert edges break easily.
Low thermal conductivity → heat stays at the cutting zone, damaging both insert and workpiece.
For manufacturers, the goal is clear: reduce tool wear, maintain stable cutting, and improve surface quality. Choosing the right turning inserts for Inconel 718 is the first and most important step.

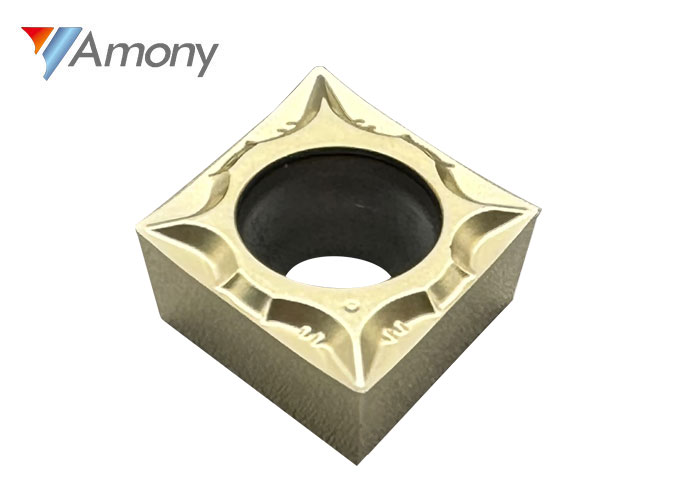

The geometry of a turning insert directly impacts cutting forces, heat distribution, and surface finish. For Inconel 718, careful geometry selection is essential.
Positive rake angle:
Lowers cutting forces.
Produces smoother chip flow.
Reduces risk of work hardening.
Negative rake angle:
Stronger edge strength, useful for heavy roughing.
However, generates higher cutting force → not recommended for finishing.
Best practice: Use positive rake inserts for finishing, negative rake inserts for roughing operations with higher feed rates.
Small radius (0.4–0.8 mm) → reduces cutting pressure and heat, ideal for finishing.
Larger radius (>1.2 mm) → higher strength but increases heat, more suitable for roughing.
Recommended nose radius: 0.4–0.8 mm for most applications.
Honed edge (slight edge rounding): improves strength and reduces micro-chipping.
Sharp edge: cuts efficiently but wears quickly.
Use a slightly honed edge to balance sharpness and durability.
Selecting the right insert grade and coating is critical when machining Inconel 718.
Submicron grain carbide: offers high hardness and resistance to deformation.
Cobalt-enriched carbide: withstands high temperatures and improves toughness.
Choose carbide grades with high hot hardness and toughness for Inconel 718.
Different coatings significantly affect wear resistance and cutting performance.
| Coating Type | Properties | Best Use |
|---|---|---|
| PVD TiAlN / AlTiN | High oxidation resistance, hot hardness | General turning, roughing & finishing |
| PVD AlCrN | Excellent wear resistance at high temperature | High-speed finishing |
| Uncoated carbide | Stable edge, prevents flaking | Low-speed finishing, tight tolerances |
| DLC (Diamond-Like Carbon) | Low friction, smooth cutting | Non-ferrous alloys, limited use in Inconel |
Recommendation: Use PVD-coated carbide inserts (TiAlN, AlTiN) for most applications. For fine finishing at lower speeds, uncoated carbide may provide more stable cutting.
Correct cutting parameters are as important as insert selection. Running too fast or too deep will dramatically shorten tool life.
| Operation | Cutting Speed (Vc, m/min) | Feed Rate (f, mm/rev) | Depth of Cut (ap, mm) |
|---|---|---|---|
| Roughing | 20–40 | 0.2–0.3 | 1.0–2.0 |
| Semi-finishing | 25–45 | 0.15–0.25 | 0.5–1.0 |
| Finishing | 30–60 | 0.1–0.2 | 0.2–0.5 |
Tips:
Always use lower cutting speeds compared to steels.
Use high-pressure coolant (50–80 bar) to control heat and flush chips.
Avoid interrupted cutting (tool notching risk is very high).
Stable machine setup reduces vibration and prolongs tool life.
Chip Control
Use inserts with optimized chipbreaker geometry.
Avoid long stringy chips by adjusting feed rate.
Coolant Application
Apply high-pressure, directed coolant jets.
Reduces temperature and prevents work hardening.
Avoid Dwelling
Do not pause in the cut → leads to work hardening.
Always keep consistent feed movement.
Use Rigid Tool Holders
Vibration accelerates tool wear.
Use stable clamping systems and short tool overhang.
| Problem | Cause | Solution |
|---|---|---|
| Rapid tool wear | Excessive cutting speed, wrong coating | Reduce speed, switch to PVD-coated carbide |
| Edge chipping | Too sharp edge, interrupted cut | Use honed edge, stable cutting conditions |
| Poor surface finish | Nose radius too large, vibration | Reduce radius (0.4–0.8 mm), rigid setup |
| Built-up edge | Inadequate coolant, low feed | Apply high-pressure coolant, optimize feed |
A manufacturer in aerospace industry tested PVD-coated carbide inserts (TiAlN) vs. uncoated carbide.
Cutting conditions: 30 m/min, 0.2 mm/rev, ap = 0.5 mm.
Result:
Uncoated inserts → tool life ~ 10 minutes, stable but rapid wear.
PVD-coated inserts → tool life ~ 25 minutes, better resistance to notch wear.
Conclusion: PVD-coated carbide inserts offer 2–3x longer tool life in most applications.
Insert Geometry: Positive rake, small nose radius, honed edge.
Insert Grade: Submicron carbide with high hot hardness.
Coating: PVD coatings (TiAlN, AlTiN) for general turning, uncoated carbide for precision finishing.
Cutting Parameters: Low cutting speed (20–60 m/min), moderate feed, shallow depth of cut.
Coolant & Setup: High-pressure coolant and rigid setup are essential.
By following these guidelines, manufacturers can extend tool life, improve productivity, and achieve better surface finish when machining Inconel 718.
