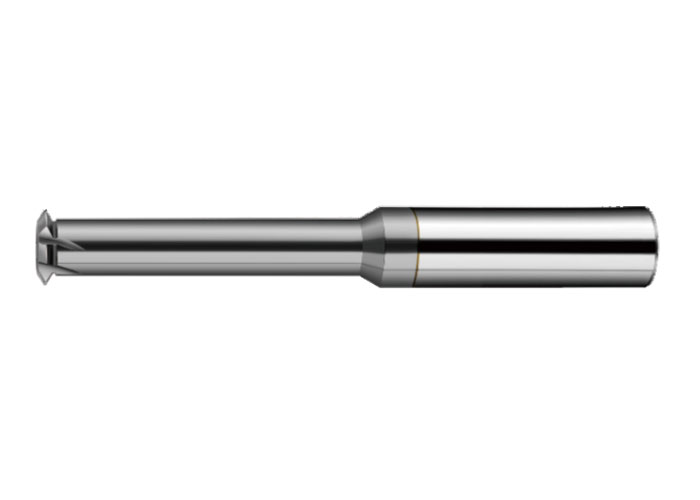

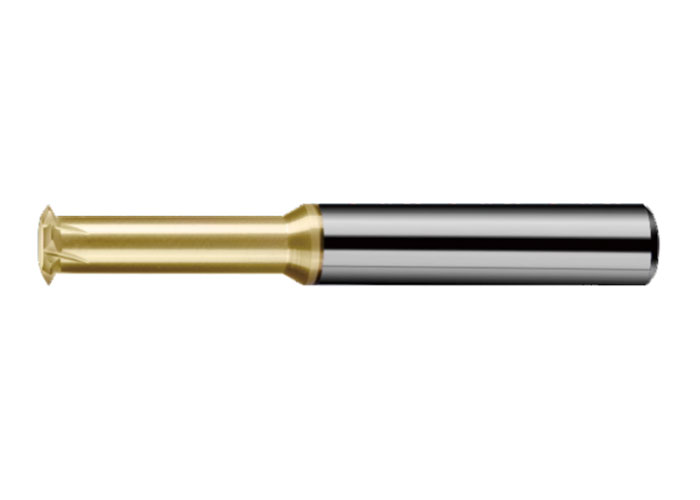

A60 Series Single Tooth Solid Carbide Thread Mill | High-Precision A60 & UNC Thread Cutter

The A60 Series Single Tooth Solid Carbide Thread Mill is a versatile high-precision tool designed for A60 thread profiles, American standard threads (UNC/UNF/UNEF), and nut machining.
Its single tooth design provides excellent flexibility, making it suitable for a wide range of thread sizes and pitches, while maintaining high accuracy and smooth surface finish.

This thread mill supports both right-hand and left-hand threads, reducing the need for multiple tool purchases and providing a cost-effective solution for CNC machining centers, precision mechanical parts, and high-accuracy components.
Made from ultra-fine grain solid carbide, it ensures superior wear resistance, edge strength, and long tool life, even under high-speed or continuous operation.

Features

1. Wide Versatility
   Suitable for a broad range of thread sizes and pitches, covering various industrial applications.

2. Supports A60 & American Threads
   Can machine A60 profiles, UNC, UNF, UNEF threads, and nut threads, reducing the need for multiple tools.

3. Single Tooth Precision
   Ensures stable cutting and excellent surface finish for both internal and external threads.

4. Right-Hand & Left-Hand Threads
   Fully capable of machining both RH and LH threads, increasing tool flexibility.

5. High-Precision Thread Forming
   CNC-ground for accurate thread geometry and consistent tolerances.

6. Premium Solid Carbide Material

Applications

• CNC machining centers

• Precision mechanical components

• Automotive and aerospace parts

• Nut and bolt thread production

• High-precision industrial assemblies

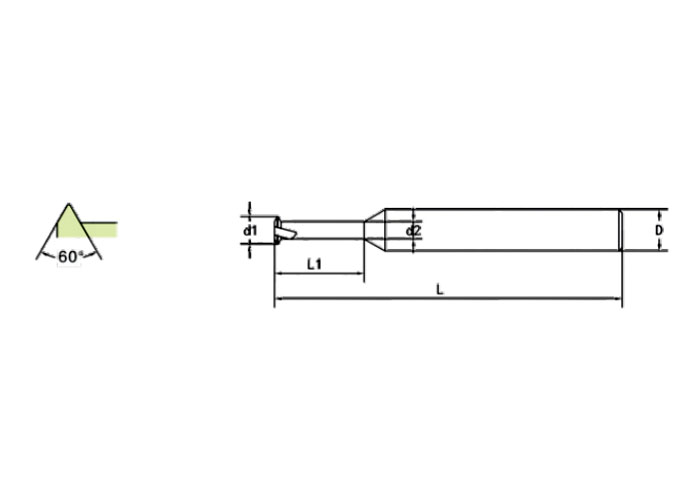

Available Sizes and Specifications
