PRODUCT DETAILS
The WCMT050308 insert is widely used in general U-drill applications, ensuring consistent performance in various materials. It provides a good balance between sharpness and edge strength.
Excellent wear resistance for long tool life
Optimized for medium to large holes
Smooth surface finish and stable drilling performance

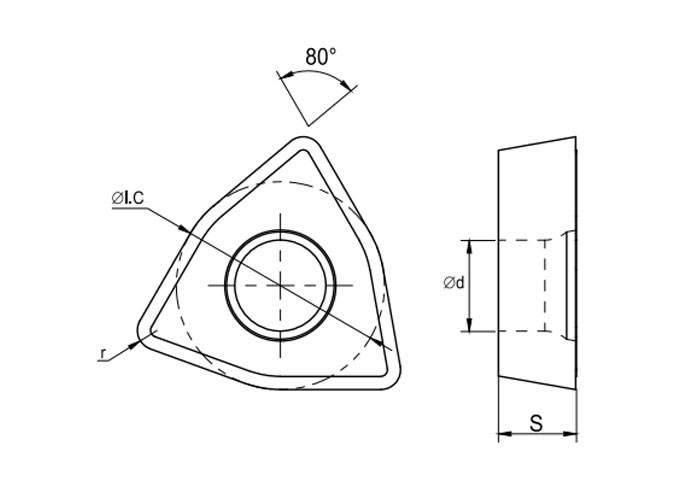

WCMT050308 Size:
| Length |
Size(mm) |
|||
| IC | S | d | r | |
| 5.4 | 7.94 | 3.18 | 3.2 | 0.8 |
WCMT050308 Specifications:
| Model |
Boring Range (mm) |
Grade |
|||||||
|
CVD |
PVD |
||||||||
| KA3115 | PA4215 | PA4225 | PA1025 | PA1825 | MA1828 | SA1520 | SA1525 | ||
| WCMT050308 | 26-30 | ● | ● | ||||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
