PRODUCT DETAILS

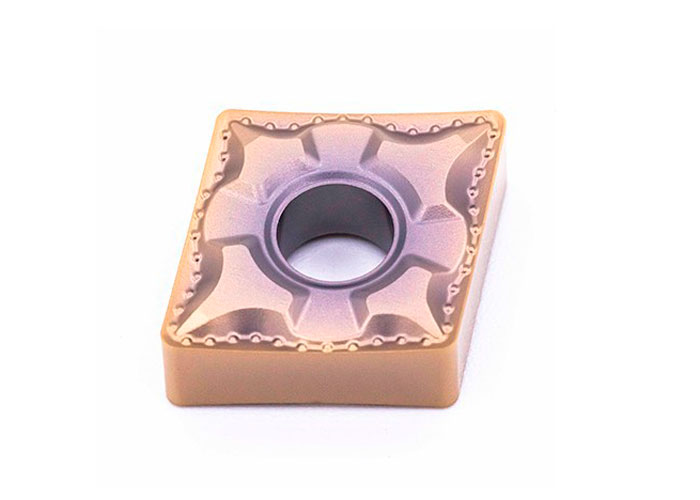

The CNMG090304 carbide insert is engineered for light finishing applications. It ensures a smooth surface finish and stable chip formation at low feed rates. Perfect for precision turning of steel and cast iron parts.
Key Features:
Sharp cutting edge for fine finishing
Stable performance in low-depth cutting
PVD coating for extended wear life
Excellent surface smoothness
Applications:
Finishing of carbon and alloy steels
Suitable for shafts, flanges, and precision components
CNMG090304 Size:
| Length | Size(mm) | |||
| IC | S | d | r | |
| 9 | 9.525 | 3.18 | 3.81 | 0.4 |
CNMG090304 Specifications:
| Model | ap (mm) | f (mm/rev) | Grade | |||
| CVD | PVD | |||||
| PA4215 | PA4225 | PA1825 | MA1828 | |||
| CNMG090304-AF | 0.26-3.2 | 0.05-0.15 | ● | |||
| CNMG090304-BF | 0.25-2.4 | 0.05-0.15 | ● | ● | ||
CNMG090304 Chip Breaker:
| Chip Breaker | Application | Features |
| AF | Steel Finishing | M-level double-sided chipbreaker, two-stage bumpeffect for stable chip handling in a wide range of feeds. |
| BF | Stainless steel finishing | M-level double-sided chipbreaker, small edge width, double positive rake angle, sharp blade edge, low cuttingresistance, special edge inclination design, can obtainhigh-quality machined surface. |
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S | Superalloy | SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
