PRODUCT DETAILS
TPGH090204 combines sharpness with strength — perfect for finishing and semi-finishing of stainless steel and thin-walled parts. It maintains surface precision even under moderate feed rates.
Features:
Balanced geometry for both sharpness and rigidity
Excellent heat resistance for long runs
Consistent chip control for stable cutting
Great for semi-finishing stainless steel parts
Applications:
Used in aerospace precision parts, medical machining, and stainless steel fittings.

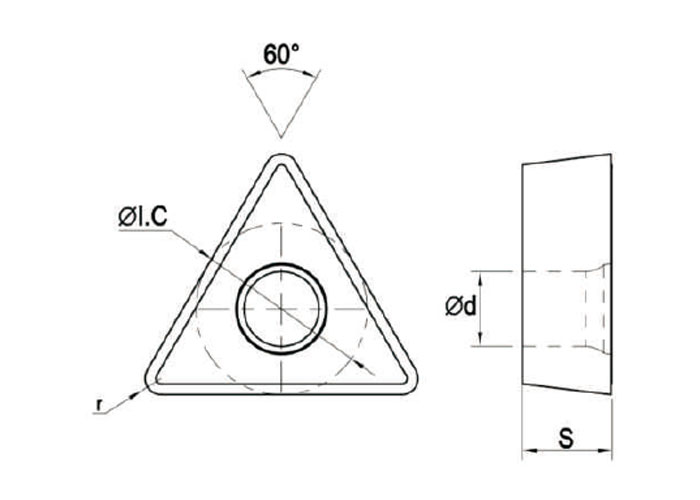

TPGH090204 Size:
| Length |
Size(mm) |
|||
| IC | S | d | r | |
| 9 | 5.56 | 2.38 | 2.8 | 0.4 |
TPGH090204 Specifications:
| Model |
ap (mm) |
f (mm/rev) |
Grade |
||||||
|
CVD |
PVD |
||||||||
| KA3115 | PA4215 | PA4225 | PA1820 | MA1820 | SA1520 | SA1525 | |||
| TPGH090204R/L | 0.4-1.5 | 0.05-0.10 | ● | ||||||
TPGH090204 Chip Breaker:
| Chip Breaker | Application | Features |
| None |
Small Parts Machining |
|
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
