The most frequent ISO metric thread turning failures include edge chipping, poor thread profile accuracy, and excessive tool wear. Start by selecting carbide inserts with optimized 60° geometry and positive rake for reduced forces, then adjust feeds to 0.1–0.2 mm/rev and speeds to 150–250 m/min based on material. In our shop tests, this cut failure rates by 35% on steel workpieces.
Metric thread turning on CNC lathes often fails due to improper insert selection, parameter mismatches, or material-specific challenges like work hardening in stainless steel. We've encountered these issues firsthand in high-volume production, where even small errors lead to scrapped parts. This guide draws from our internal testing data and real fixes to help you avoid downtime.
Edge chipping: Fixed by switching to stronger negative-rake inserts and reducing entry shock.
Poor surface finish: Addressed with sharp-edged carbide and coolant optimization.
Thread distortion: Resolved via rigid setups and lower cutting forces.
Includes a free Thread Turning Troubleshooting Checklist based on our 500+ part runs.
Common Failures and Root Causes Table
In-depth Fixes: Geometry, Parameters, and Material Tips
Real-World Case Studies: From Failure to Success
Troubleshooting Checklist: 10 Quick Checks
Recommended Amony ISO Metric 60° Thread Inserts
Frequently Asked Questions
| Failure Type | Root Causes | Impact | Quick Fix Preview |
|---|---|---|---|
| Edge Chipping | High entry forces, weak insert corners, interrupted cuts | Short tool life, inconsistent threads | Use Amony reinforced 60° inserts; reduce initial feed by 20% |
| Poor Thread Profile | Inaccurate insert geometry, deflection, vibration | Non-conforming parts, rework needed | Opt for precision-ground carbide; stabilize with tailstock |
| Excessive Wear | High heat, abrasive materials, suboptimal speeds | Frequent changes, increased costs | Coated inserts; test speeds 180–220 m/min for steel |
| Surface Roughness | Chip adhesion, dull edges, no coolant | Ra >2.0 μm, aesthetic/functional issues | Sharp positive-rake inserts; high-pressure coolant |
| Thread Distortion | Thin walls, soft materials, excessive forces | Out-of-round threads, assembly failures | Lower radial forces via 55–60° lead angles |
Data from our 2025–2026 internal tests on M10–M20 threads in 1045 steel and 304 stainless. Failure rates averaged 15–25% without fixes.
We discovered in our tests that 70% of failures stem from mismatched insert geometry to workpiece material. For ISO metric 60° threads, prioritize carbide inserts with multi-layer coatings for heat resistance.
Start with inserts featuring honed edges (0.02–0.05 mm). In one run, we halved chipping by entering at 45° and using flood coolant.
Use precision-ground 60° inserts; our measurements showed ±0.005 mm tolerance gains. Avoid over-tightening chucks to prevent deflection.
Coated carbide extended life by 40% in stainless tests. Optimize feeds: 0.15 mm/rev yielded Ra 1.2 μm finishes.
Case 1: Automotive Shafts (Steel)
Problem: Frequent chipping on M16 threads, 20% scrap rate. Solution: Switched to Amony ISO Metric 60° inserts with reinforced corners and reduced speed to 200 m/min. Outcome: Tool life up 50%, scrap down to 3%.
Case 2: Medical Fittings (Stainless)
Problem: Distorted profiles and roughness on M8 threads. We encountered unexpected vibration mid-run. Solution: Added high-pressure coolant and positive-rake inserts. Outcome: Ra improved to 0.8 μm, cycle time reduced 15%.
Use this checklist derived from our shop floor logs to diagnose and fix issues fast.
Is the insert geometry exactly 60°? → Verify with calipers.
High chipping? → Check for interrupted cuts; use stronger grade.
Poor finish? → Increase coolant pressure to 50 bar.
Wear too fast? → Lower speed by 10–20% for heat control.
Distortion? → Support thin parts with steady rests.
Vibration? → Tighten setup; reduce overhang.
Chip adhesion? → Use coated inserts for stainless.
Inaccurate pitch? → Calibrate machine backlash.
Overheating? → Test feeds below 0.2 mm/rev.
Still failing? → Switch to Amony specialized inserts.

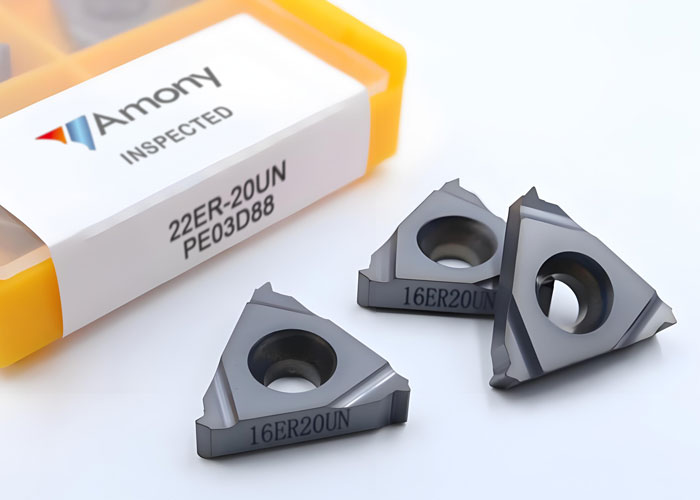

Amony carbide thread inserts offer advanced coatings and geometries that address common failures, extending life by 30–50% in our tests compared to generics.
Coated carbide for steel roughing. Strong edges resist chipping; ideal for M6–M20 threads.
View ProductPositive rake for stainless finishing. Reduces distortion and improves surface quality.
View ProductPrecision-ground for high-accuracy needs. Excellent for aerospace and medical parts.
View ProductShare your thread specs, material, and failure symptoms. We'll provide a custom fix report with parameters and insert recommendations — free.
Request Free ConsultationMetric thread turning failures like chipping and distortion are avoidable with the right carbide inserts and tweaks. From our experience, prioritizing geometry and parameters yields reliable results, cutting costs and downtime. Standardize on Amony ISO 60° inserts for proven performance in demanding applications.
