Micro Drilling Guide: How to Drill Holes Smaller Than 1mm

Drilling holes smaller than 1mm is one of the most challenging operations in modern CNC machining. Unlike conventional drilling, micro drilling operates at the physical limits of tool rigidity,    spindle accuracy, and process stability.

Many machining engineers experience frequent tool breakage, inconsistent hole size, or unacceptable surface quality when drilling micro holes.    In most cases, the root cause is not the operator, but a mismatch between tool design, machine capability, and process strategy.

Why Drilling Holes Smaller Than 1mm Is So Difficult

As drill diameter decreases, several physical limitations become increasingly critical. These challenges are often underestimated by engineers transitioning from standard drilling to micro drilling.

• Extremely low tool rigidity: A micro drill below 1mm has very limited bending resistance. Even minor cutting force fluctuations can cause deflection or breakage.

• Runout amplification: A spindle runout of just a few microns can exceed the cutting edge radius of a micro drill.

• Limited chip evacuation space:  Micro flutes can easily clog, especially in ductile materials.

• Heat concentration: Heat cannot dissipate effectively and accumulates at the cutting edge.

• Material microstructure effects: Grain size and inclusions become significant at small diameters.

Choosing the Right Micro Drill Bit

Tool selection is the single most important factor in successful micro drilling. Standard small-diameter drills are not suitable for drilling holes below 1mm.    Dedicated micro drill designs are required.

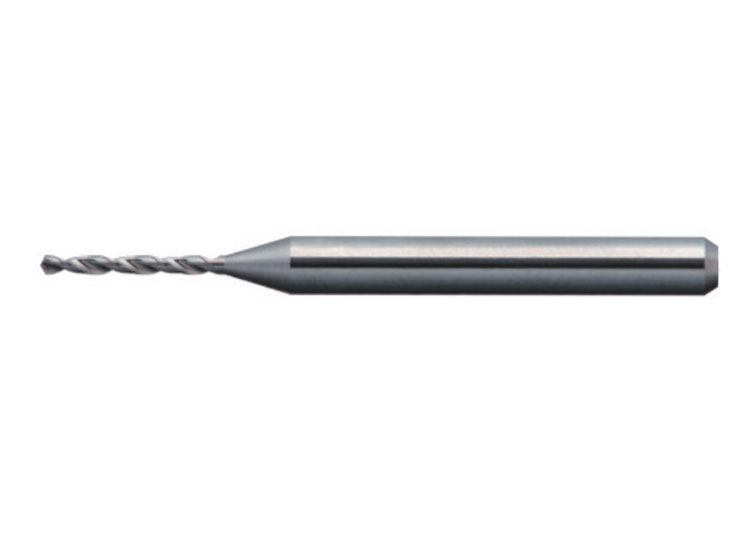

Our ZMD Series micro carbide drill bits are specifically engineered for micro hole machining:

• Cutting diameter smaller than 1.0 mm

• Fixed shank diameter for improved clamping stability

• High concentricity and edge consistency

• Optimized flute geometry for micro chip evacuation

The use of a fixed shank diameter is particularly important,    as it significantly improves tool holding rigidity compared to reduced-shank designs.

Spindle and Tool Holding Requirements

Even the best micro drill will fail if the machine setup does not meet the necessary requirements. Successful micro drilling depends heavily on spindle performance and tool holding accuracy.

• High spindle speed: Typically 30,000 RPM or higher

• Ultra-low runout: Ideally ≤ 3 μm at the tool tip

• Precision tool holders: Shrink-fit or hydraulic chucks are recommended

Excessive runout not only causes immediate tool breakage, but also leads to uneven cutting forces and inconsistent hole size.

Cutting Parameters and Process Control

Micro drilling requires a different approach to cutting parameters compared to standard drilling. Overly conservative settings often cause more problems than they solve.

• Avoid rubbing:  Feed rates must be sufficient to maintain cutting action rather than scraping.

• Stable engagement:  Sudden changes in feed or speed should be avoided.

• Controlled peck drilling:  eck cycles should be minimized and carefully programmed.

• Consistent coolant strategy:  Compressed air or minimum quantity lubrication is often preferred.

Material Considerations in Micro Drilling

Material behavior has a much greater influence in micro drilling than in conventional drilling. The same tool and parameters may produce very different results depending on the workpiece material.

• Stainless steel: High risk of work hardening and chip adhesion

• Aluminum: Chip welding and built-up edge must be controlled

• Copper and brass: Extremely ductile, prone to chip clogging

• Hardened materials: Require optimized edge preparation and rigidity

Typical Applications for Micro Drilling

Micro drilling below 1mm is commonly required in the following industries:

• Electronics and PCB manufacturing

• Medical devices and surgical instruments

• Precision molds and inserts

• Micro-mechanics and watch components

In these applications, process stability and repeatability are often more important than raw cutting speed.
