Chamfering aluminum seems straightforward — until burrs form, tools wear prematurely, or surface finish degrades. These issues often stem from avoidable mistakes that compound into costly rework, scrapped parts, and delayed shipments. This guide identifies the top 5 mistakes machinists make when chamfering aluminum with carbide end mills, and provides practical, engineer-tested fixes using Amony ALC Series tools and DLC (ta-C) Coating technology to ensure clean, burr-free edges every time.
1️⃣ Why Avoiding These Mistakes Matters for Aluminum
Aluminum's gummy nature, high thermal conductivity, and tendency to adhere to cutting edges create unique challenges for chamfering operations. Small errors compound quickly:
💸 Cost Impact
Each mistake can add 2-5 minutes of secondary deburring per part. At high volumes, this translates to thousands in lost productivity annually.
🔧 Quality Impact
Burrs, poor edge quality, or inconsistent chamfers can cause assembly interference, customer rejections, or safety concerns in aerospace/medical applications.
⏱️ Downtime Impact
Premature tool wear from mistakes forces frequent tool changes, interrupting production flow and reducing overall equipment effectiveness (OEE).
Key insight: Most aluminum chamfering mistakes are preventable with the right tool selection, parameter optimization, and process discipline. Let's break down the top 5 errors and how to fix them.
2️⃣ Mistake #1: Using Wrong or Uncoated Tools
Using uncoated carbide, TiAlN-coated, or steel-optimized tools for aluminum chamfering.
Result: Aluminum adhesion, built-up edge, rapid tool wear, and poor surface finish.
Always use tools with DLC (ta-C) Coating for aluminum operations.
Why it works: DLC (ta-C) provides ultra-low friction coefficient (<0.1), preventing aluminum from welding to the cutting edge
Tool life impact: Extends tool life 2-3× vs uncoated carbide in aluminum chamfering
Surface quality: Enables consistent, burr-free edges with minimal secondary operations
For detailed coating performance comparisons, see our Ultimate Guide to Carbide End Mills for Aluminum.
3️⃣ Mistake #2: Excessive Feed per Tooth
Using feed rates optimized for steel (0.006-0.010"/tooth) on aluminum chamfering operations.
Result: Edge tearing, breakout burrs, inconsistent chamfer geometry, and accelerated tool wear.
Start with conservative feeds: 0.002-0.004"/tooth for aluminum chamfering.
Why it works: Lower feed reduces cutting forces at the delicate chamfer edge, preventing tearing and burr formation
Parameter tuning: Increase feed by 10-20% increments only after validating chip formation and edge quality
Surface finish: Conservative feeds enable Ra ≤0.4 μm finishes on chamfered edges without secondary operations
Surface Speed: 400-600 SFM
Radial Engagement: ≤15%
Chamfer Angle: 45° typical
Path: Climb milling preferred
For detailed parameter science across materials, see our guide to cutting parameters.
4️⃣ Mistake #3: Wrong Chamfer Angle Selection
Using a single chamfer angle (e.g., always 45°) for all aluminum applications regardless of part geometry or material grade.
Result: Edge chipping on delicate features, inadequate deburring on thick sections, or poor surface finish on complex contours.
Match chamfer angle to application requirements:
45°: Best balance for most aluminum applications — sufficient edge strength with clean shearing action
30°: Use for delicate edges, thin-walled components, or when minimal material removal is required
60°: Use for heavy deburring, thick sections, or when maximum edge strength is critical
For detailed chamfer angle selection guidance, see our guide to selecting the correct chamfer angle.
5️⃣ Mistake #4: Inadequate Coolant Strategy
Relying on external coolant nozzles or low-pressure flood coolant for aluminum chamfering.
Result: Chip recutting at the chamfer edge, heat buildup, aluminum adhesion, and inconsistent edge quality.
Use ≥1000 psi through-tool coolant (TSC) for all aluminum chamfering operations.
Why it works: High-pressure coolant flushes chips away from the cutting zone before they can recut or weld to the edge
Coolant type: Use water-soluble or synthetic coolant with aluminum-compatible additives; avoid heavy oils that cause gumming
Alignment: Ensure coolant streams hit the cutting zone directly, not just flood the workpiece
For detailed coolant strategy comparisons, see our coolant best practices guide.
6️⃣ Mistake #5: Ignoring Edge Prep and Tool Wear
Using tools with dull edges, excessive hone, or running tools beyond recommended wear limits.
Result: Rubbing instead of cutting, work hardening, roll-over burrs, and unpredictable surface finish.
Implement proactive edge management:
Edge prep: Use sharp micro-hone edges (0.01-0.02mm) for aluminum chamfering — avoids rubbing while preventing micro-chipping
Wear monitoring: Inspect flank wear every 10-15 minutes during validation; replace at ≤0.2mm wear for consistent edge quality
Runout verification: Measure ≤0.005mm runout before installation to ensure even edge loading and predictable performance
For detailed tool life optimization strategies, see our 5 key tips to maximize tool life.
7️⃣ Prevention-First Workflow: Avoid Mistakes Before They Happen
Don't wait for mistakes to occur — build prevention into your process from the start:
→ Choose ALC Series with DLC (ta-C) coating for all aluminum operations
→ Select chamfer angle based on part geometry (30°/45°/60°)
→ Start conservative: 0.003"/tooth feed, 500 SFM, ≤15% radial engagement
→ Apply ≥1000 psi through-tool coolant with aluminum-compatible fluid
→ Test on scrap coupon: inspect edge quality, chip formation, and surface finish
→ Adjust parameters incrementally based on observed results
→ Monitor flank wear every 10-15 minutes during initial production
→ Replace tools at ≤0.2mm wear to maintain consistent edge quality
→ Document parameter sets and results for each material/geometry combination
→ Share learnings across shifts to prevent repeat mistakes
For aluminum-specific chip evacuation strategies that support mistake prevention, see our aluminum machining excellence guide.
8️⃣ Real-World Mistake Recovery: Case Studies & ROI
🔧 Case Study 1: Electronics Enclosure Shop (6061-T6 Aluminum)
Problem: Using uncoated carbide chamfer end mills caused frequent aluminum adhesion and weld burrs, requiring manual deburring that added 3.8 minutes per part.
Solution: Switched to Amony ALC Series 45° Chamfer End Mill with DLC (ta-C) Coating, optimized to 500 SFM, 0.003"/tooth, and 1200 psi through-tool coolant. Implemented climb milling path strategy.
Outcome: Weld burrs eliminated, manual deburring eliminated, edge consistency improved to ±0.02mm, and annual labor savings exceeded $48,000 across 3 CNC cells.
🔧 Case Study 2: Aerospace Bracket Manufacturer (7075-T6 Aluminum)
Problem: Excessive feed rates (0.008"/tooth) on chamfering operations caused breakout burrs and edge chipping on thin-walled brackets, resulting in 22% scrap rate.
Solution: Reduced feed to 0.003"/tooth, switched to Amony ALC Series 30° Chamfer End Mill for delicate edges, and added high-pressure coolant alignment verification. Implemented wear monitoring protocol.
Outcome: Scrap rate reduced to 3%, edge quality improved to meet aerospace specifications, and production throughput increased 26% with zero quality escapes.
For expert tips on maximizing aluminum cuts with optimal tool selection, see our expert tips guide.
✅ Aluminum Chamfering Mistake Prevention Checklist
6 Questions to Validate Your Aluminum Chamfering Setup
🛠️ Recommended Amony ALC Series Tools for Error-Free Aluminum Chamfering
Our Amony ALC Series end mills are engineered specifically for aluminum machining, featuring DLC (ta-C) Coating, optimized geometries, and rigorous quality control for high-performance aluminum applications:
ALC Series 3-Flute Square End Mill for Aluminum
Best for: General roughing/semi-finishing of 6061/7075 aluminum, flat surface milling, pocketing operations
DLC (ta-C) Coatingfor ultra-low friction (<0.1) and zero aluminum adhesion3-flute design with large gullets for efficient chip evacuation in aluminum
Sharp micro-hone edge minimizes cutting forces and prevents work hardening
Sizes: 3-20mm diameter, suitable for most CNC milling applications

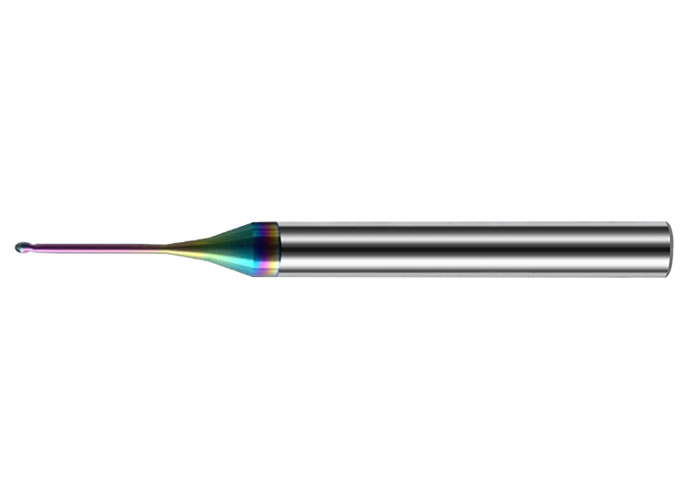

ALC Series 2-Flute Ball Nose End Mill for Aluminum
Best for: 3D contouring, mold profiling, aerospace components with complex curves in aluminum alloys
DLC (ta-C) Coatingprevents aluminum welding on ball nose for consistent surface finish2-flute design maximizes chip space for deep pockets and complex 3D paths
Precision-ground ball geometry with tight radius tolerance for fine feature resolution
Long-reach options available for deep-cavity aluminum machining
🚀 Ready to Eliminate Chamfering Mistakes in Your Aluminum Production?
Send us your current chamfering method, workpiece material (6061/7075/2024/5052), observed issues (burrs/wear/finish), and machine specifications. We'll provide a free mistake analysis, optimized tool and parameter recommendations, and ROI comparison — no obligation.
Request Free Aluminum Chamfering Consultation📋 For downloadable selection guides: Get our aerospace superalloy parts selection checklist
❓ Frequently Asked Questions
🎯 Key Takeaways
✓ Coating is critical: DLC (ta-C) Coating prevents aluminum adhesion and weld burrs — essential for chamfering operations
✓ Feed conservatively: Start at 0.002-0.004"/tooth to prevent edge tearing and breakout burrs
✓ Match angle to application: 45° for general use; 30° for delicate edges; 60° for heavy deburring
✓ Coolant enables quality: ≥1000 psi through-tool delivery prevents chip recutting and heat buildup
✓ Monitor edge condition: Sharp micro-hone edges + proactive wear monitoring prevent roll-over burrs and inconsistent finish
For the complete aluminum machining framework, see our Ultimate Guide to Carbide End Mills for Aluminum, or explore related guides on aluminum burr removal and chamfer angle selection.
