When it comes to choosing the right carbide drill bit for your machining operation, one important—yet often overlooked—decision is the flute design. Specifically:
Should you use a straight flute or a helical flute carbide drill bit?
The answer depends on your material, machine type, hole depth, and coolant strategy. In this guide, we’ll walk you through the core differences between straight and helical flute geometries, their pros and cons, and when to use each—based on both real-world applications and industry research.
Flutes are the grooves along the body of a drill bit that serve three primary functions:
Chip evacuation – removing material from the cutting edge
Coolant delivery – allowing fluids to reach the cutting zone
Structural support – providing balance and strength to the drill body
The shape of the flute—straight or helical—directly impacts these functions.
Straight flute drills feature non-spiral grooves that run parallel to the axis of the tool. These are commonly used for:
Hard and brittle materials like cast iron, brass, copper
Shallow holes
Manual drilling or low-speed machining
Better rigidity: Less prone to deflection, ideal for interrupted cuts or thin materials
Accurate hole positioning: Great for CNC or jig boring setups
Effective in short-hole applications with minimal chip volume
Lower cost: Easier to manufacture in solid carbide
Poor chip evacuation in deep holes
Not suitable for ductile materials like aluminum or stainless steel
Generates more heat without coolant channels

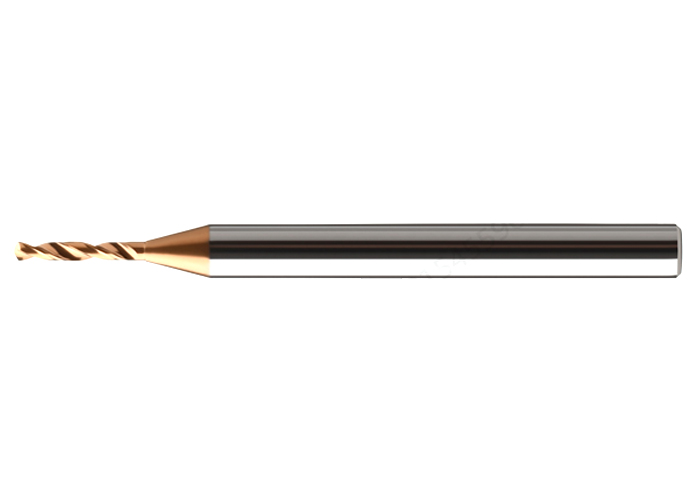

Helical or spiral flute drills have a twisted groove, designed to continuously evacuate chips upwards and out of the hole. The helix angle can vary, typically between 15° and 40° depending on the application.
These are ideal for:
Deep hole drilling
Soft or ductile materials like aluminum, mild steel, and stainless
CNC high-speed production
Superior chip removal: Spiral action moves chips away from the cutting zone
Better cooling: Especially with through-coolant designs
Minimizes work hardening: Crucial in stainless steels or high-temp alloys
Supports higher feed rates in automated setups
More prone to tool deflection
May cause hole walk if not properly fixtured
Can be more expensive due to complexity in carbide grinding
In a comparative study published in The Journal of Materials Processing Technology (2020), performance of straight vs. helical flute solid carbide drills was evaluated in drilling brass and stainless steel.
Key Findings:
In brass (a short-chipping material), straight flute drills showed better hole dimensional accuracy and less burr formation.
In stainless steel (a work-hardening material), helical flute drills outperformed straight flutes in terms of tool life and chip evacuation.
Straight flutes had lower cutting forces in shallow holes (<2D), but helical flutes were superior in depths >3D.
| Application | Best Flute Type |
|---|---|
| Drilling cast iron, brass, copper | Straight Flute |
| Short holes (<2x diameter) | Straight Flute |
| Drilling aluminum or stainless steel | Helical Flute |
| Deep holes (>3x diameter) | Helical Flute |
| Manual or slow-speed operations | Straight Flute |
| CNC high-speed drilling | Helical Flute |
| Thin sheet metals | Straight Flute |
| Materials prone to chip welding | Helical Flute (with TiAlN or DLC coating) |
Coolant channels: Helical drills often come with internal coolant for high-performance setups.
Helix angle: Low-angle helix (~20°) is better for harder materials; high-angle helix (~35°–40°) works well in soft metals.
Coatings: Both flute types can be coated (TiAlN, AlCrN, etc.), enhancing performance depending on the workpiece material.
As a manufacturer of carbide cutting tools, we guide our clients in selecting the right geometry based on:
Workpiece material and hardness
Hole depth-to-diameter ratio
Machine type (manual or CNC)
Tolerance and surface finish requirements
Desired tool life and production volume
We offer custom flute geometries upon request, along with advanced coatings and through-coolant designs for helical drills.
Both straight flute and helical flute carbide drill bits have their rightful place in precision machining.
Choose straight flutes for rigidity and shallow holes in hard or brittle materials.
Choose helical flutes when you need efficient chip evacuation, deeper holes, or are working with ductile materials.
Making the right choice improves not just hole quality—but also tool life, cycle time, and ultimately, cost per part.
Contact our experts today for a free quote or technical consultation.
