PRODUCT DETAILS
VBGT110304 Carbide insert has a 0.4mm corner radius, offering a stronger cutting edge for semi-finishing operations where durability and edge stability are crucial. Suitable for higher feed rates and slightly deeper cuts on carbon steel and stainless steel.
Key Features:
Reinforced cutting edge for longer life.
High stability under moderate cutting conditions.
Excellent chip control and heat resistance.
Applications:
Machinery components, general industrial parts, precision shafts.

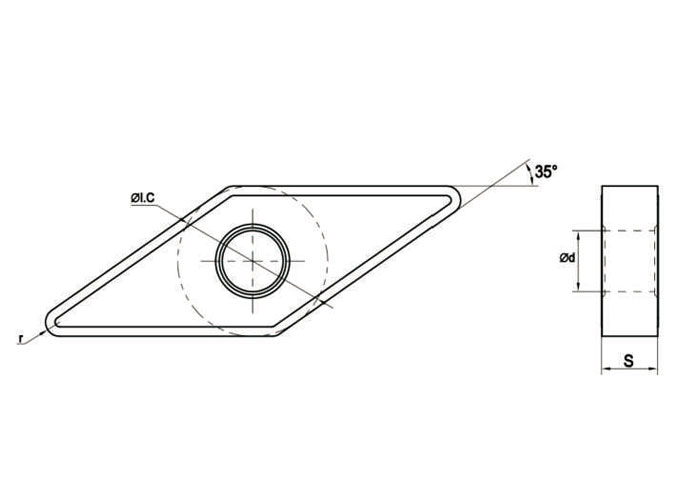

VBGT110304 Size:
| Length | Size(mm) | |||
| IC | S | d | r | |
| 11 | 6.35 | 3.18 | 2.81 | 0.2 |
VBGT110304 Specifications:
| Model | ap (mm) | f (mm/rev) | Grade | ||||||
| CVD | PVD | ||||||||
| KA3115 | PA4215 | PA4225 | MA1820 | MA1828 | SA1520 | SA1525 | |||
| VBGT110304-FS | 0.2-2.5 | 0.08-0.25 | ● | ● | |||||
VBGT110304 Chip Breaker:
| Chip Breaker | Application | Features |
| FS | Small Parts Machining |
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S | Superalloy | SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
