MPR Series Solid Carbide Micro Boring Bars | Precision Profiling & Ball Nose Tools for CNC Lathe

Material: Ultra-fine grain tungsten carbide
Application: Profiling and Boring
Packaging: Shock-proof plastic tubes & export cartons
Shipping: Fast air express (DHL/FedEx) in 5-7 days
OEM & Custom: Support for custom drawings & private labeling

Request a Quote

PRODUCT DETAILS

MPR Series Solid Carbide Micro Boring Bars

The MPR Series is a precision solid carbide micro boring bar with a full ball nose (R-type) profiling blade, specially designed for internal spherical surfaces, arc contours, and complex 3D internal cavity profiling.

Its full-arc profiling geometry delivers excellent contour accuracy and smooth surface finish on inner spherical surfaces, concave arcs, and irregular curved features, making it ideal for high-precision mold and die work on CNC lathes.

Key Features & Applications:

Ball nose (R-type) full arc profiling blade
Precision machining of inner spherical surfaces and arc contours
Excellent for 3D complex internal cavity profiling
High rigidity and stability in small-diameter bores
Ideal for H13, P20, stainless steel, titanium and mold materials

MPR Series Specifications

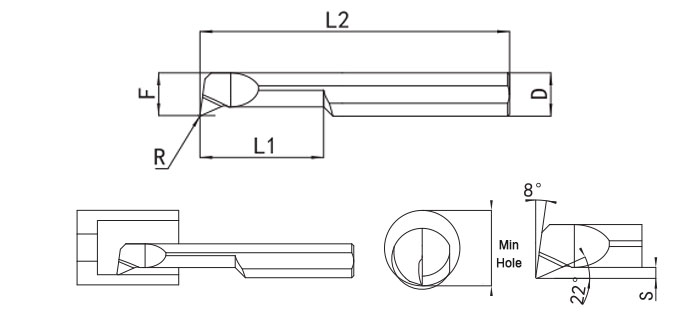

MPR Series Solid Carbide Micro Boring Bars Specifications

Model	F	L1	S	R	D	L2	Min Hole
MPR-1-R0-4L	0.85	4	0.15	0	4	40	1.0
MPR-1-R0.05-4L	0.85	4	0.15	0.05	4	40	1.0
MPR-1.5-R0.1-5L	1.3	5	0.15	0.1	4	40	1.5
MPR-2-R0.05-6L	1.8	6	0.3	0.05	4	40	2.0
MPR-2-R0.1-6L	1.8	6	0.3	0.1	4	40	2.0
MPR-2.5-R0.1-7L	2.3	7	0.3	0.1	4	40	2.5
MPR-3-R0.05-6L	2.7	6	0.3	0.05	4	50	3.0
MPR-3-R0.1-6L	2.7	6	0.3	0.1	4	50	3.0
MPR-3-R0.2-6L	2.7	6	0.3	0.2	4	50	3.0
MPR-3-R0.05-10L	2.7	10	0.3	0.05	4	50	3.0
MPR-3-R0.1-10L	2.7	10	0.3	0.1	4	50	3.0
MPR-3-R0.2-10L	2.7	10	0.3	0.2	4	50	3.0
MPR-3-R0.1-15L	2.7	15	0.3	0.1	4	50	3.0
MPR-3-R0.2-15L	2.7	15	0.3	0.2	4	50	3.0
MPR-3.5-R0.1-12L	3.3	12	0.3	0.1	4	50	3.5
MPR-4-R0.05-8L	3.7	8	0.7	0.05	4	50	4.0
MPR-4-R0.1-8L	3.7	8	0.7	0.1	4	50	4.0
MPR-4-R0.2-8L	3.7	8	0.7	0.2	4	50	4.0
MPR-4-R0.05-15L	3.7	15	0.7	0.05	4	50	4.0
MPR-4-R0.1-15L	3.7	15	0.7	0.1	4	50	4.0
MPR-4-R0.2-15L	3.7	15	0.7	0.2	4	50	4.0
MPR-4-R0.1-22L	3.7	22	0.7	0.1	4	50	4.0
MPR-4-R0.2-22L	3.7	22	0.7	0.2	4	50	4.0
MPR-5-R0.1-15L	4.7	15	1.2	0.1	5	50	5.0
MPR-5-R0.2-15L	4.7	15	1.2	0.2	5	50	5.0
MPR-5-R0.05-20L	4.7	20	1.2	0.05	5	50	5.0
MPR-5-R0.1-20L	4.7	20	1.2	0.1	5	50	5.0
MPR-5-R0.2-20L	4.7	20	1.2	0.2	5	50	5.0
MPR-5-R0.1-22L	4.7	22	1.2	0.1	5	50	5.0
MPR-5-R0.2-22L	4.7	22	1.2	0.2	5	50	5.0
MPR-6-R0.1-15L	5.7	15	1.2	0.1	6	50	6.0
MPR-6-R0.2-15L	5.7	15	1.2	0.2	6	50	6.0
MPR-6-R0.05-20L	5.7	20	1.2	0.05	6	50	6.0
MPR-6-R0.1-20L	5.7	20	1.2	0.1	6	50	6.0
MPR-6-R0.2-20L	5.7	20	1.2	0.2	6	50	6.0
MPR-6-R0.1-22L	5.7	22	1.2	0.1	6	50	6.0
MPR-6-R0.2-22L	5.7	22	1.2	0.2	6	50	6.0
MPR-7-R0.15-25L	6.5	25	1.5	0.15	7	50	7.0
MPR-8-R0.2-22L	7.5	22	1.5	0.2	8	60	8.0
MPR-8-R0.15-30L	7.5	30	1.5	0.15	8	60	8.0
MPR-8-R0.3-30L	7.5	30	1.5	0.3	8	60	8.0
