PRODUCT DETAILS
The TCMT110212 is a heavy-duty roughing insert built for high metal removal rates. Its reinforced cutting edge provides excellent stability in roughing operations on cast iron and steel.
Key Features:
Thick, durable cutting edge
High resistance to chipping and fracture
Suitable for heavy cutting and interrupted machining

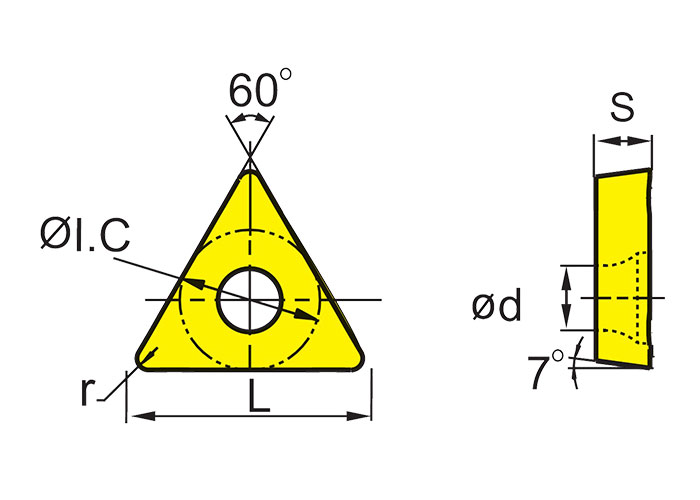

TCMT110212 Size:
| Length | Size(mm) | |||
| IC | S | d | r | |
| 11 | 6.35 | 2.38 | 2.8 | 1.2 |
TCMT110212 Specifications:
| Model |
ap (mm) |
f (mm/rev) |
Grade | ||||||
| CVD | PVD | ||||||||
| KA3115 | PA4215 | PA4225 | PA1825 | MA1828 | SA1520 | SA1525 | |||
| TCMT110212-GM | 1.2-3.3 | 0.15-0.55 | ● | ● | ● | ||||
| TCMT110212-GF | 1.2-3.3 | 0.20-0.40 | ● | ● | |||||
TCMT110212 Chip Breaker:
| Chip Breaker | Application | Features |
| GM |
General semi-finishing |
M-level single-sided chip breaker, suitable for semi-finishing of inner holes and outer circles of P, M and K type materials. |
| GF | Stainless steel finishing | M-level single-sided chipbreaker, suitable for innerholeand outer circle finishing of stainless steel. |
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
